Key Highlights:

• 1.2L 3-Cylinder N/A

• 1.2L 3-Cylinder i-CNG
• 1.2L 3-Cylinder i-turbo

Tata Motors Passengers Vehicles recently took the wraps off one of the major sales contributors, Punch’s facelift. The Punch, ever since its launch, has been a game changer for the subcompact SUV space, especially with the revival of the micro-SUV era. Tata Punch has been coexisting for the last five years with its dominating sales figures in the mass-market space. Talking of the numbers particularly, it is on the verge of surpassing the mark of seven lakh units to date. The reaffirmation on the count can be done through the Punch’s status as the no. 1 seller in the year 2024 across the nation, holding about two lakh units. The number game has been interpreted by a continuous streak of the Punch’s monthly sales as a top-seller. Moreover, this highlights the trust consumership has built over this Tata.

However, Punch has always been questionable for its performance aspect, considering the same Tiago shared 1.2L 3-cylinder N/A being carried onto a bigger body shell. To solve the ongoing issue, Tata Motors, following the update, has introduced three different engine modules with the Punch now. Earlier, Tata incorporated a 1.2L 3-cylinder N/A, along with an i-CNG. Nevertheless, accepting the consumer’s demand over underperforming real-world figures, they added a new powertrain option alongside the existing one, a 1.2L 3-cylinder Revotron i-turbo. This newly added engine is a familiar source from that of the Altroz Racer and the Nexon Facelift, adapting to the Otto cycle. So, now when there have been several power units to one model, it becomes quite necessary to break down which one is suitable for what purpose! Therefore, this written piece will focus on understanding each of these subdivisions comprehensively.

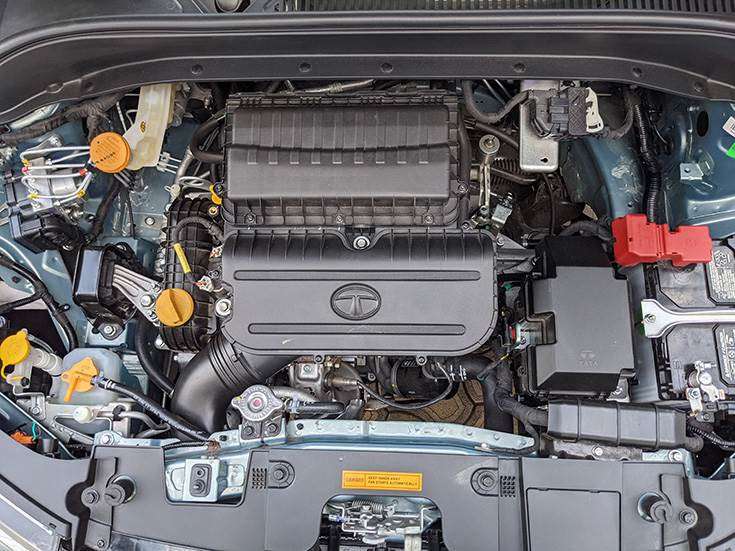

1. 1.2L 3-Cylinder N/A

Working:

In the Tata Punch, the 1.2 L 3-cylinder N/A (naturally aspirated) engine operates like a traditional petrol motor where air enters the combustion chamber purely by atmospheric pressure as the pistons move down during the intake stroke. Without any external boost devices, fuel is metered and mixed with air via a multipoint fuel injection system and ignited by spark plugs, resulting in a linear and predictable power delivery but relatively modest torque and power figures suited for everyday city driving.

• The N/A engine is designed to handle routine urban driving without stressing components, ensuring consistent performance over long ownership periods.
• The simpler hardware lets the service intervals be straightforward, further continued with spare parts being on the affordable side, and long-term maintenance costs remaining low.
• Throttle inputs translate directly into predictable movement, making stop-go traffic, parking, and tight city manoeuvres easier.


Purpose:

This engine is not performance orientated but is quite applauded in terms of refinement levels, therefore delivering sufficient power and torque figures for daily city drives, shorter highway cruises, and occasional hill travels. Having said that, if you value long-term dependability more than outright acceleration or high-speed performance coexisting with economical, composed and steady driving, this engine is tastefully designed for you.

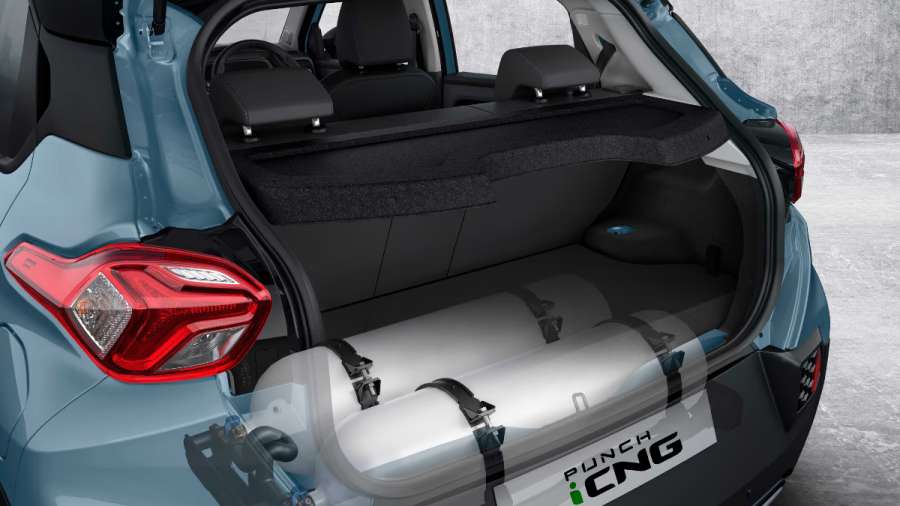

1.2L 3-Cylinder i-CNG:

Working:

• In CNG mode, high-pressure natural gas from onboard cylinders flows into the intake post pressure regulation.
• The engine control unit (ECU) recalibrates air-fuel ratios and ignition timing because CNG burns slower and has a different energy content compared with petrol.
• CNG combustion produces fewer hydrocarbons and lower carbon dioxide emissions, making it cleaner and more efficient in fuel cost per kilometre.
• However, because CNG has a lower energy density than petrol, the engine produces less peak power and torque (around 73.5 bhp and 103 Nm in CNG mode) in comparison to the petrol mode.

Purpose:

The i-CNG setup is utilised to reduce running costs and emissions while still retaining petrol as a fallback. It’s ideal for buyers who drive daily urban routes and prioritise fuel economy, lower running expenses, and reduced environmental impact, even if that means accepting slightly lower performance.

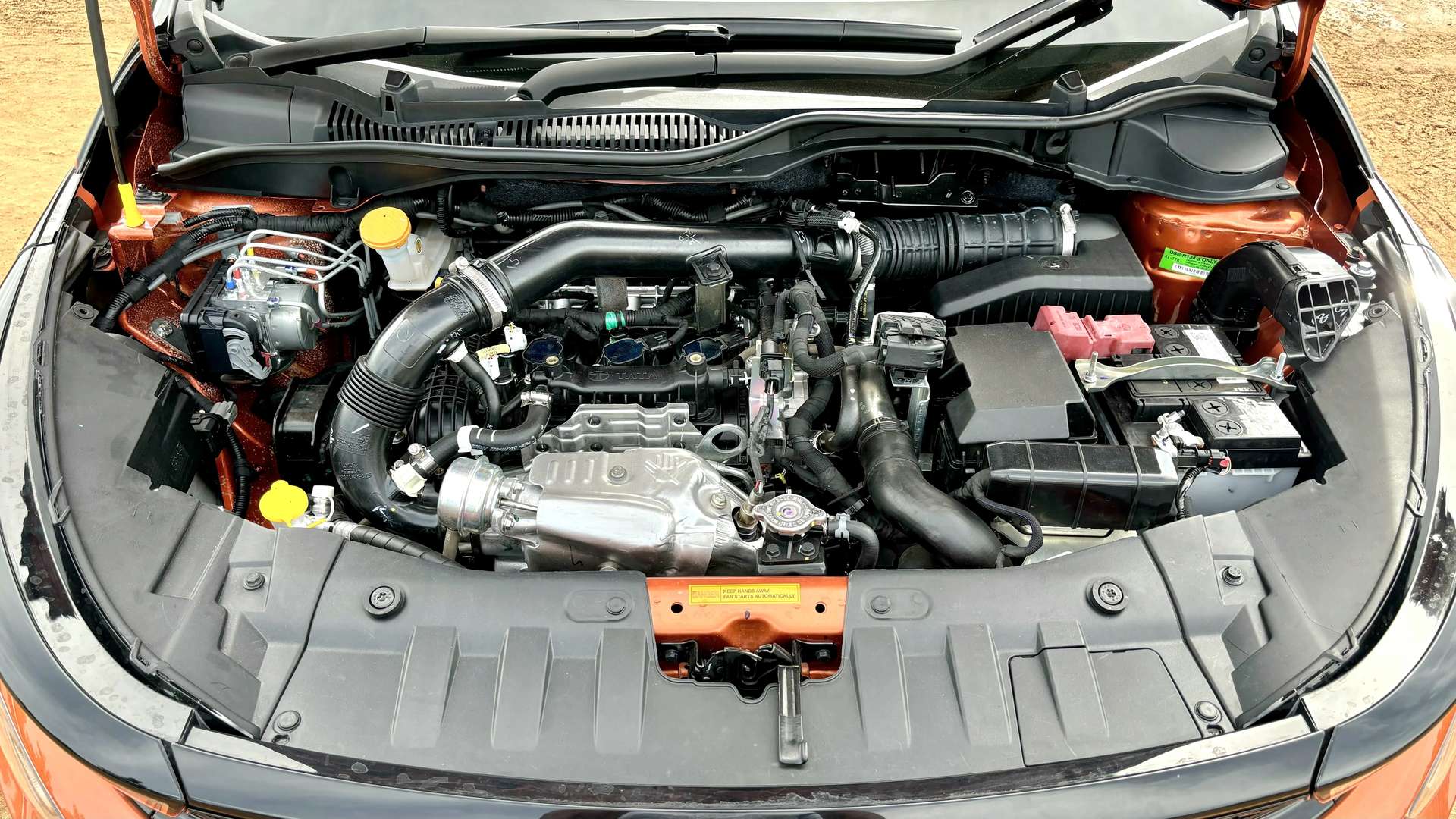

3. 1.2L 3-Cylinder Revotron i-turbo:

Working:

In contrast, the i-turbo (1.2 L turbocharged petrol) engine forces additional air into the cylinders using a single scroll turbocharger, a turbine driven by exhaust gases that compresses intake air before it enters the combustion chamber, allowing significantly more air (and corresponding fuel) to be combusted per cycle. This results in much higher peak power and especially torque at lower engine speeds compared with the N/A unit, giving stronger acceleration and responsiveness. As the turbo potentialises exhaust energy that would otherwise be wasted, it effectively increases the engine’s volumetric efficiency and power density, though it also requires different tuning (such as lower compression ratios and robust cooling) to handle the higher pressures and heat generated during boosted operation.

• Increased torque, particularly at lower rpm ranges; the Punch i-Turbo generates about 120 bhp and 170 Nm of torque, much more than the N/A version.
• It feels more responsive on highways and while overtaking thanks to improved acceleration and mid-range punch.
• Because the engine can extract more work from the same displacement, efficiency is increased at greater loads.
• Increased torque, particularly at lower rpm ranges: the Punch i-Turbo generates about 120 bhp and 170 Nm of torque, much more than the N/A version.
• It feels more responsive on highways and while overtaking thanks to improved acceleration and mid-range punch.
• Following the cause, the engine can extract more work from the same displacement; efficiency is increased at greater loads.


In order to handle these changes, the engine is tuned with a lower effective compression ratio, stronger cooling, and precise engine management to minimise thermal stress and prevent the knock.

Purpose:

The i-Turbo powertrain is for those who seek a combination of performance and versatility. In short, this is for drivers who ask for stronger acceleration, more usable torque at low speeds, and better highway performance without stepping up to a larger engine. It is positioned as the top-end option for those who prioritise spirited driving and load-carrying ability over purely economical operation.

Conclusion:

To bring to a conclusion, all these engine modules have been designed for a predefined purpose depending on their equivalent modules; Indian road conditions are diverse and challenging, so evaluating on the same and further adapting to one’s long-term driving requirements, these sub-divisions are categorised. Now, it depends on the consumers which one suits them overall.

​

​

​

​

:

​

​

​
